About This Item:

Description

Features:

  • CNC machined Aluminum shock bodies and caps
  • Titanium gray anodized shock bodies and caps
  • Lower shock ends includes red anodized aluminum balls
  • Fully threaded for rapid adjustment
  • 3.5mm thick shock shafts
  • Fits 1/8 & 1/10 scale crawlers & trucks, 1/10 scale trophy truck and short course trucks (such as Axial Bomber and Vaterra Twin hammers rear)

    • Specifications:

  • Length (Mounting hole to hole): 113mm
  • Shock Body Diameter: 14mm
  • Spring Diameter: 19mm
  • Spring Length: 68mm
  • Full Shaft Travel Range: 36mm (without Rubber bump stop)
  • Shaft Diameter: 3.5mm
    • Description

    Features:

  • CNC machined Aluminum shock bodies and caps
  • Titanium gray anodized shock bodies and caps
  • Lower shock ends includes red anodized aluminum balls
  • Fully threaded for rapid adjustment
  • 3.5mm thick shock shafts
  • Fits 1/8 & 1/10 scale crawlers & trucks, 1/10 scale trophy truck and short course trucks (such as Axial Bomber and Vaterra Twin hammers rear)

    • Specifications:

  • Length (Mounting hole to hole): 113mm
  • Shock Body Diameter: 14mm
  • Spring Diameter: 19mm
  • Spring Length: 68mm
  • Full Shaft Travel Range: 36mm (without Rubber bump stop)
  • Shaft Diameter: 3.5mm
    • Echo Six Hobbies by Echo Six Hobbies

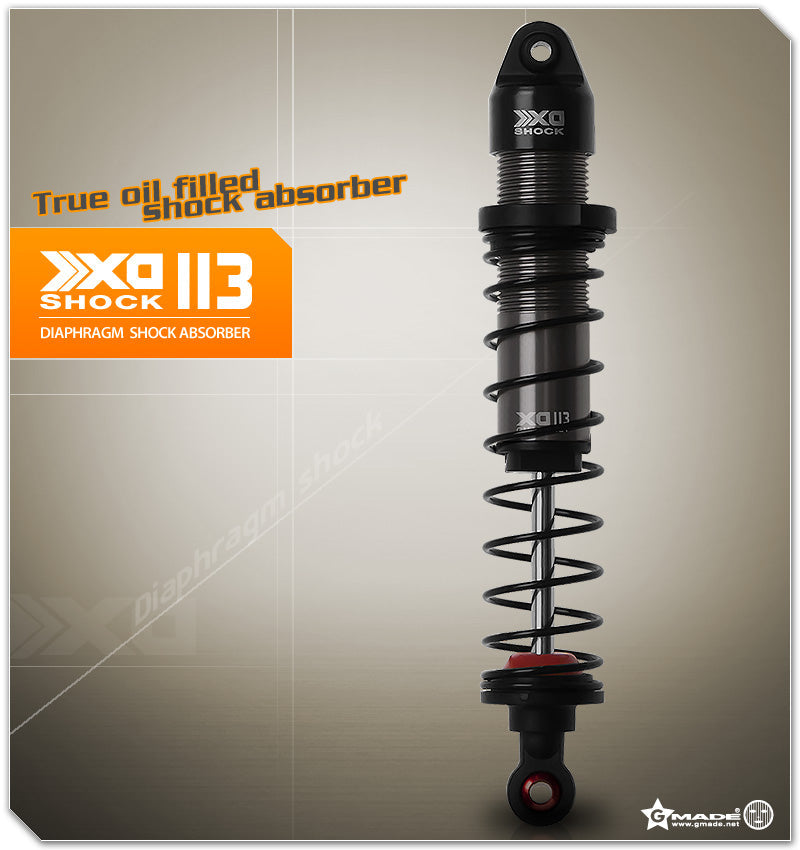

    XD Diaphragm Shock 113mm (2)

    $32.00
    $32.00
    Shipping calculated at checkout.
