The TBS VTX RX Plate is designed to be mounted on the stack standoffs with a 30x30mm mounting pattern. It comes with plugs and cables for easy building and maintenance.

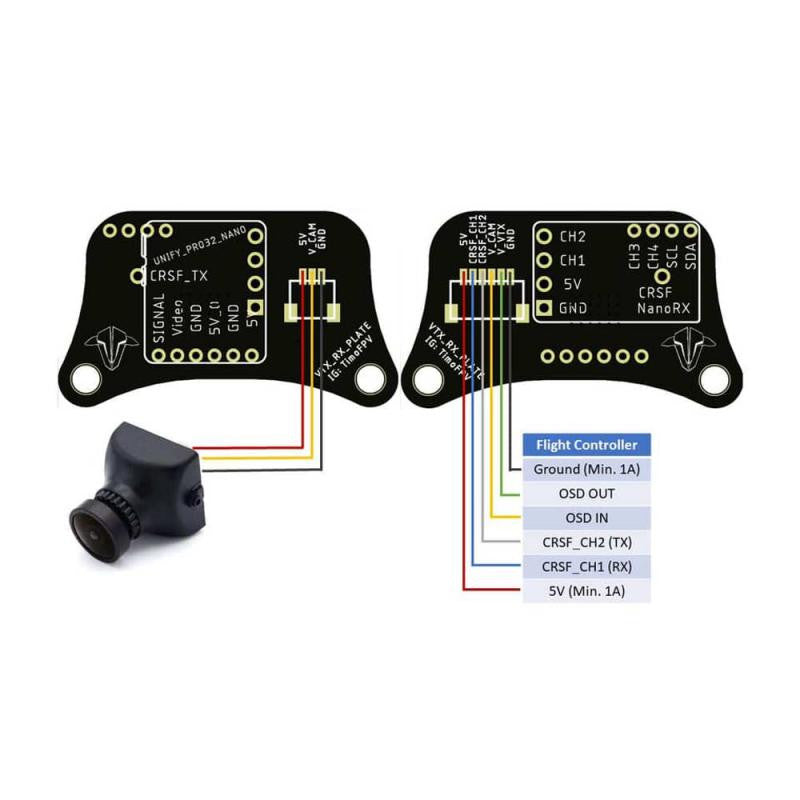

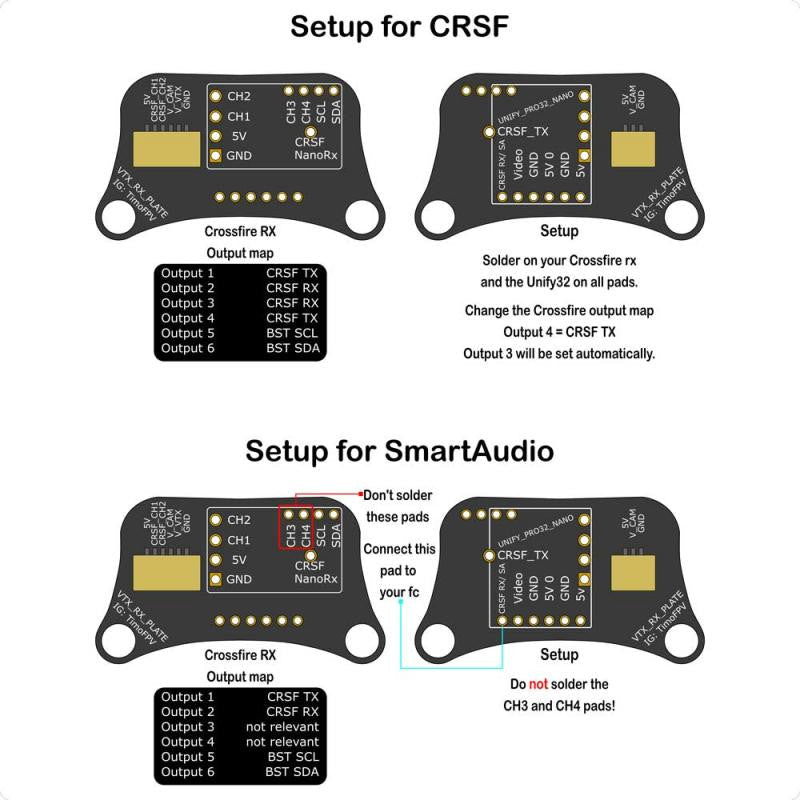

*CRSF TX / RX between the VTX and RX are internally wired if you connect all the pins.

Designed by TimoFPV

Weight: 1.7g
Mounting Holes: M3
Mounting Holes Distance: 30mm
Compatibility: TBS Unify Pro32 Nano, TBS Crossfire Nano RX

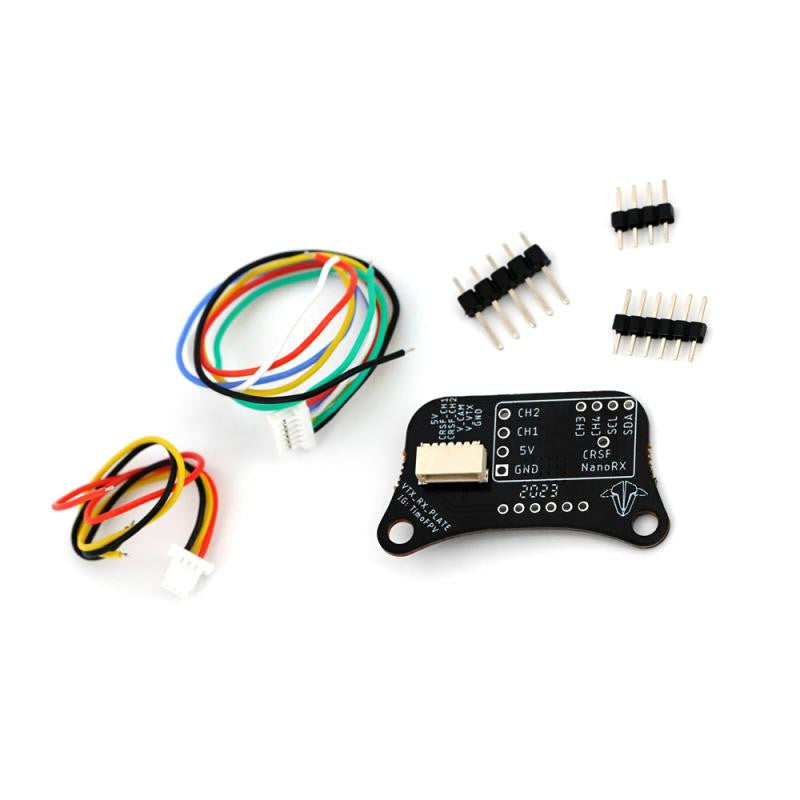

Includes:
1 x Mounting Plate
3 x Pin Headers
1 x 3pins plug with silicone wires
1 x 6 pins plug with silicone wires
