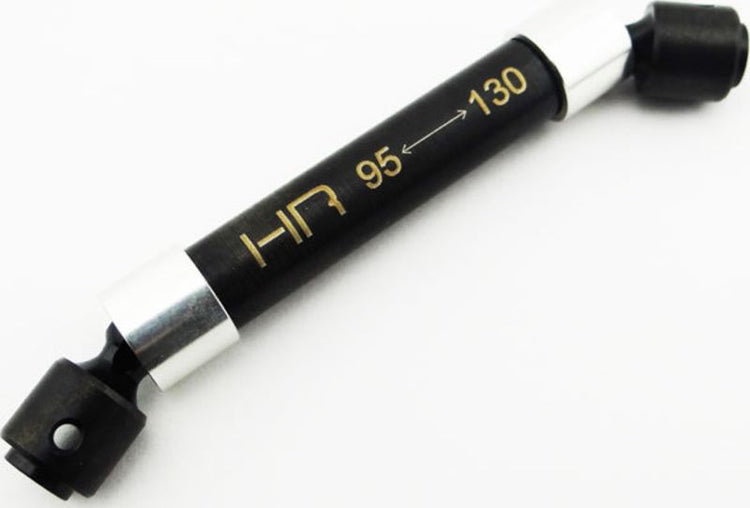

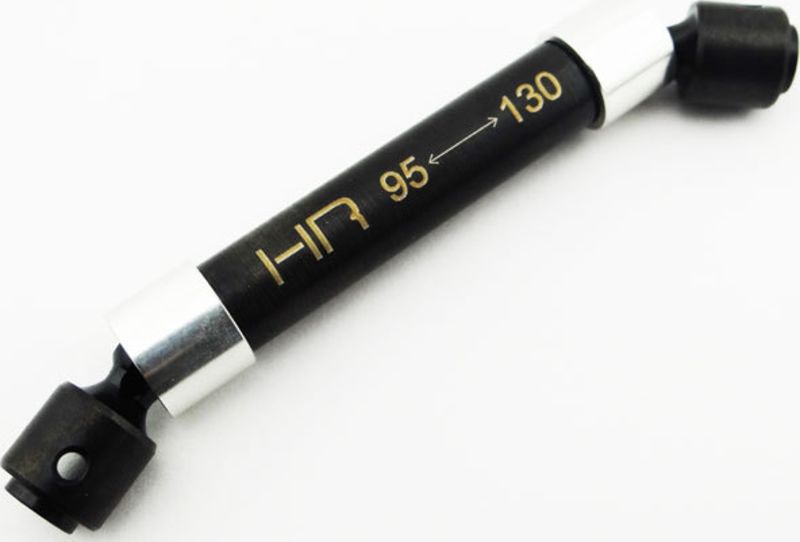

Hot Racing optional upgrade heavy duty splined star drive shaft for the Tamiya CR01 (front), Axial AX10 (stock), Axial SCX10 (front), or custom vehicle. Please see the specifications below to verify fitment for your vehicle.

Included:
- One (1) center CVD drive shaft assembly

Requirements:
- 4X M3 setscrews or 2X screw pins (e. g. Axial AXA0175) to attach to transmission and differentials
- Recommended to maintain CV joint and shaft spline with grease
- Recommended to use a removable-type locking adhesive on screws threading into metal

Comments:
- Fits the Tamiya CR01 (front), Axial AX10 (stock), Axial SCX10 (front), or custom vehicle
- Replacement parts are Hot Racing: RCV11DH (drive hub), RCV11P (CV rebuild kit), RCV11R (o-rings)
- Available driveshafts are, Hot Racing: SCP37VS (short 95-130mm), SCP37VM (medium 107-142mm), SCP37VL (long 120-155mm)
- Chassis / Center Gear Box / Front Shaft / Rear Shaft:
- Axial RR10 / stock / SCP37VM / HR SCP37VL (needs AXA0175)
- Axial SCX10 / HR SCX38TP03 / HR SCP37VS / HR SCP37VM
- Axial SCX10 / HR SCX38HT03 / HR SCP37VS / HR SCP37VM
- Axial Wraith / HR WRA38TP03 / HR SCP37VS / HR SCP37VM
- Axial Wraith / HR WRA38CP03 / HR SCP37VM / HR SCP37VM
- Axial Wraith / HR SCX38HT03 / HR SCP37VS / HR SCP37V
description revised by: SN March 20, 2019

Features:

Heavy duty CNC machined hardened carbon steel construction

Aluminum pin capture rings with rubber o-rings to prevent movement

Design eliminated CV pin setscrew

Compatible with 5mm output shafts

Steel is black finished

M3 threaded holes for vehicle attachment

Specifications:

Collapsed length end-to-end: 93mm

Recommended operating length: 95-130mm end-to-end (85-120mm hub pin to hub pin)

Recommended travel: 35mm

Spline engagement at 130mm: 10mm
