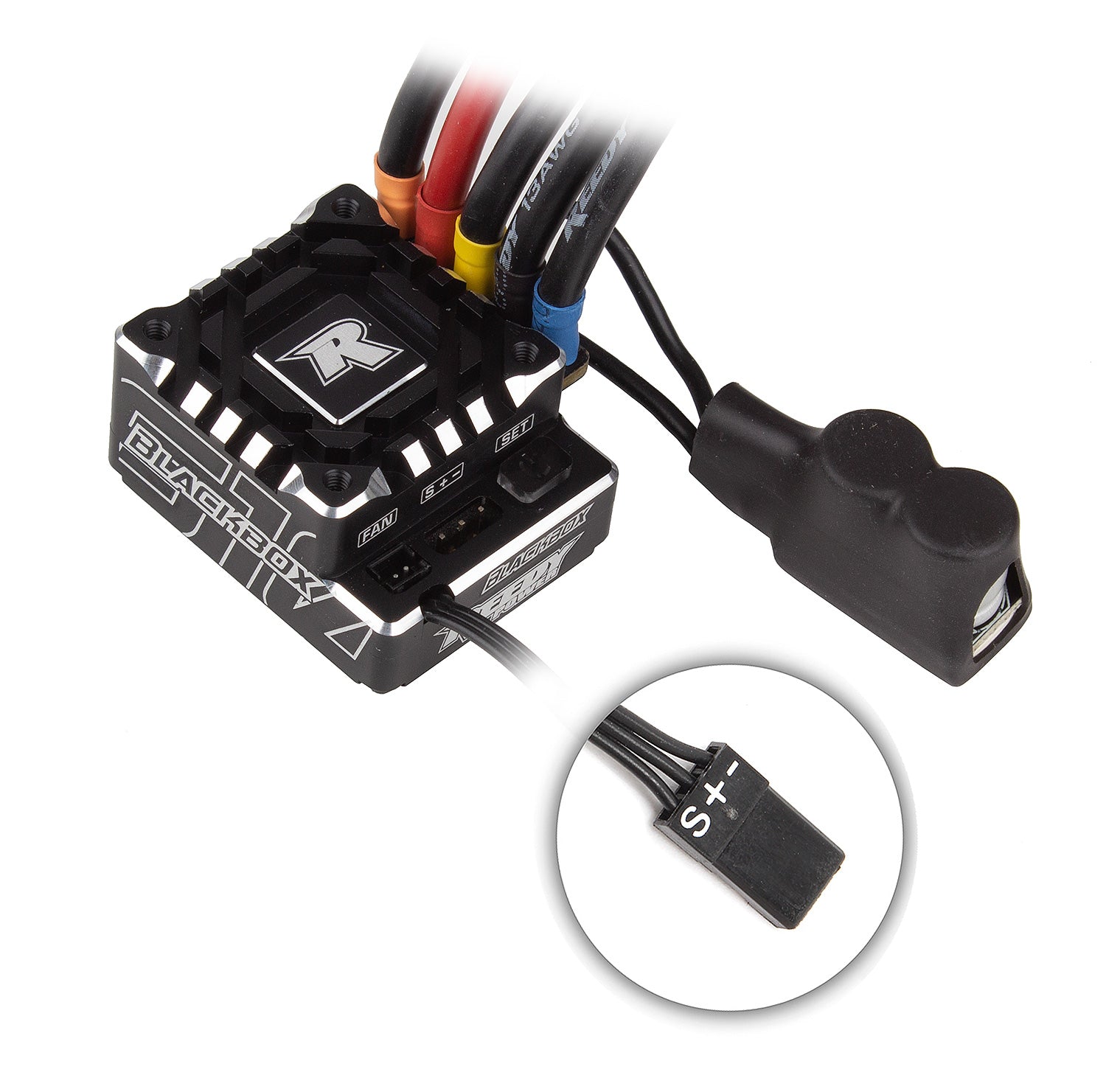

When released in 2017, the Reedy Blackbox 510R set the standard for drivability and braking feel in the RC racing world. Now the Reedy Blackbox 610R is available to racers worldwide!

Updated hardware, new tuning options, and extensive competition testing by Reedy's engineering and racing team will not go unnoticed. The end result? Greater performance, higher quality, and a more reliable ESC for racers of all skill levels. World-class throttle and brake feel with precision adjustability makes the Blackbox 610R the ideal choice for stock/spec and modified class 1:10 on-road and off-road racing applications.

Features:
CNC machined black aluminum case with integrated heat sink
Fully adjustable brake, throttle, power, and safety functions*
Blinky mode with ROAR approved software
Precision throttle and brake control
Ultra-low resistance FET board
32-bit microcontroller unit (MCU)
On-board power button
Solder tabs with 13-gauge power wires
Pro external capacitor board
RPM and ESC temp data logging*
Firmware updateable*

*Requires #27027 Blackbox Programmer (NOT INCLUDED)

Notes:
To program the Blackbox 610R, the #27027 Programmer with firmware version EE460139 must be used. This version is already installed when purchasing the #27017 610R/Programmer combo.

Specifications:

Voltage Input: 2S LiPo

Continuous Current: 160

Dimensions (mm): 38.5x36.9x19.5; Weight w/o wires and fan (g): 45

Motor Limit: 4.5T

BEC: Adjustable 6.0-7.4V/5A

Power Wires: 13-guage silicone
