These are the RC4WD Bilstein B6 4600 Series Shock Absorbers (80mm). These have been Officially Licensed by Bilstein and are only available from RC4WD and their Dealers.

These shock feature their X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft.

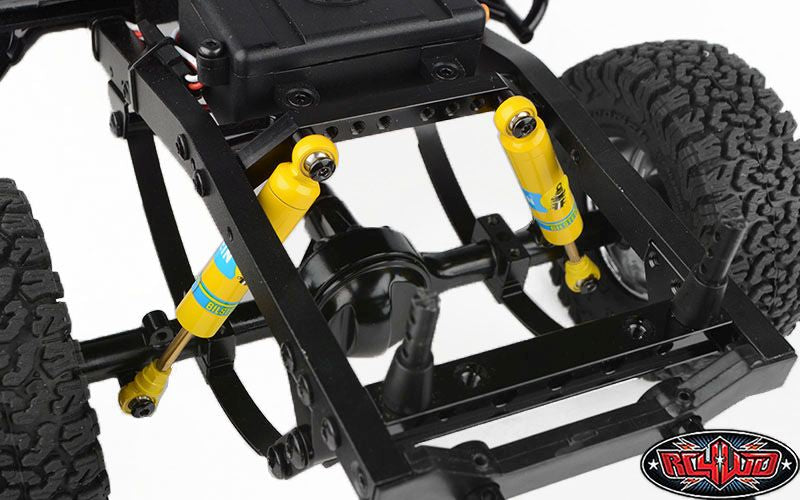

Shown installed on RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069) for example (Not Included)

---

Includes:

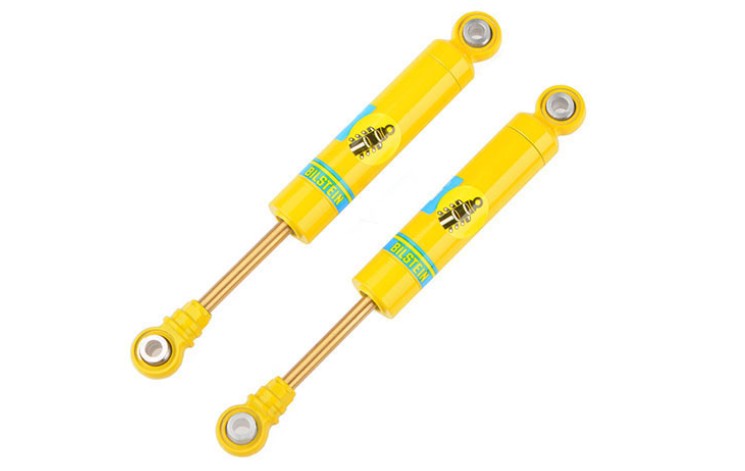

• 2x RC4WD Bilstein B6 4600 Series Shock Absorbers (80mm)
• 1x Bilstein Decal Sheet

---

Specifications:

• Machined Billet Aluminum
• Yellow Powder Coated Finish
• Internal Spring Design
• X-ring Gaskets
• Titanium Nitride Coated Shock Shafts
• Hole to Hole (Compressed): 2.40in / 61mm
• Hole to Hole (Uncompressed): 3.15in / 80mm
• Overall Length: 3.51in / 89.2mm
• Travel Length: 0.74in / 19.0mm
• Shock Body OD: 0.39in / 10mm
• Shaft OD: 0.11in / 3.0mm
• Each Weighs: 0.38oz / 10.9g

---

Optional Parts:

• RC4WD Small Shock Rebuild Kit (X-Ring) (Z-S0244)

---

Optional Lengths:

• RC4WD Bilstein B6 4600 Series Shock Absorbers (60mm) (Z-D0016)
• RC4WD Bilstein B6 4600 Series Shock Absorbers (70mm) (Z-D0021)
• RC4WD Bilstein B6 4600 Series Shock Absorbers (90mm) (Z-D00046)
• RC4WD Bilstein B6 4600 Series Shock Absorbers (100mm) (Z-D0054)
