About This Item:
Description

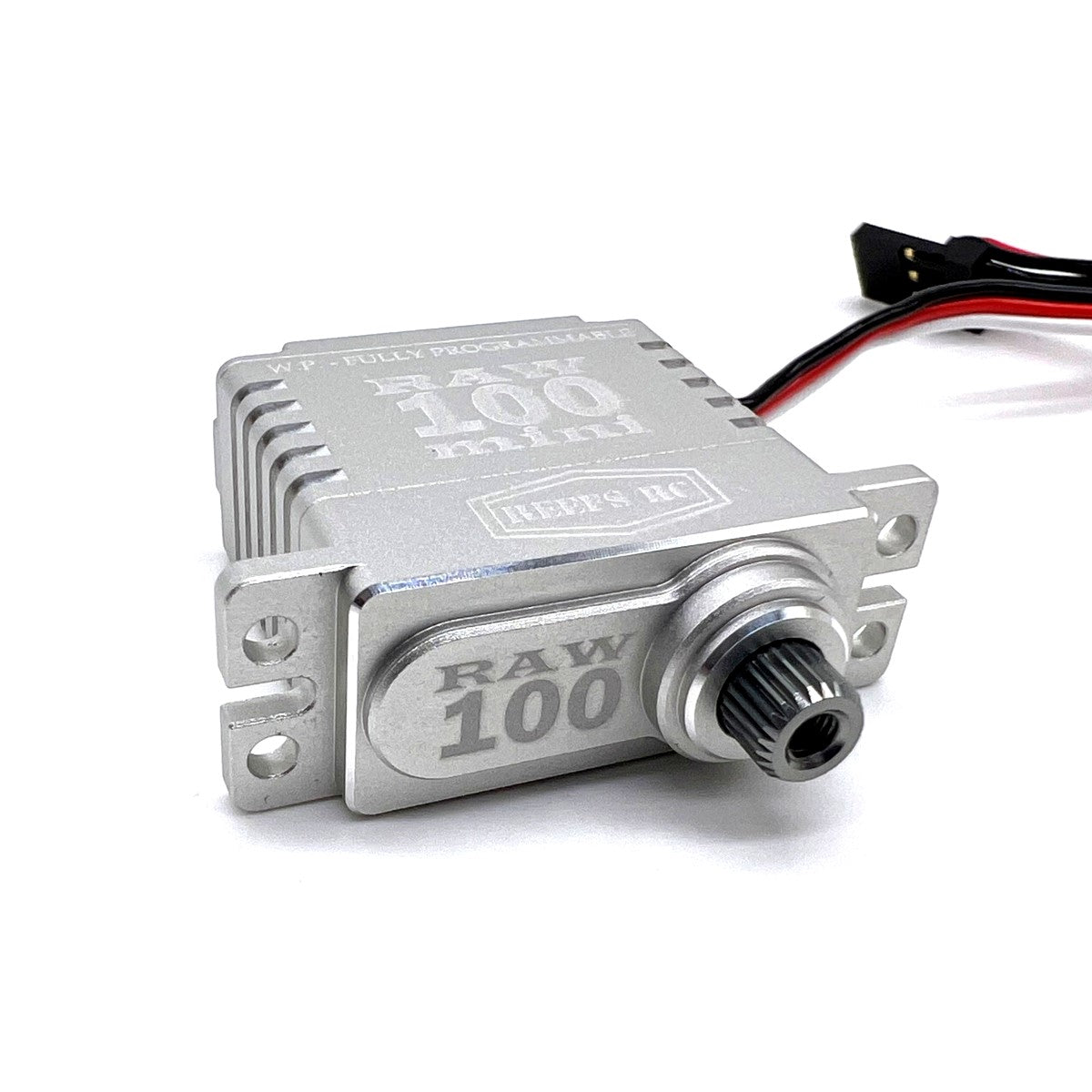

REEFS RC RAW 100 Mini Servo is a powerhouse in a small package. The heatsink all aluminum waterproof case design ensures it is ready to go for any application. The servo is fully programmable with REEFS LINK (sold separately).High Torque High Speed Mini Coreless Servo Submarine Waterproof Magnetic Angle Sensor, Pulse Width Modulation Control REEFS LINK required for Programming Temp Rate: -15C ~ +70C Voltage: 6V-8.4V; Dead Band Width: 2microseconds All Metal Gears, CNC Aluminum Casing with integrated Heat Sink design, Bearing Type: 2BB, 25T Spline Dimension (LWH):1.16x.55x1.14in / 29.5x14x29mm, Weight: 1.05oz / 30g Torque: 85oz-in @ 6.0V/95oz-in @ 7.4V/103oz-in @ 8.4V Speed: .11sec @ 6.0V/.10sec @ 7.4V/.08sec @ 8.4V Unload Current: 180mA/200mA/230mA/260mA @ 4.8V/6.0V/7.4V/8.4V Load Current: 1.2A/1.4A/1.5A/1.8A @ 4.8V/6.0V/7.4V/8.4V
Features:
Specifications:
Description
REEFS RC RAW 100 Mini Servo is a powerhouse in a small package. The heatsink all aluminum waterproof case design ensures it is ready to go for any application. The servo is fully programmable with REEFS LINK (sold separately).High Torque High Speed Mini Coreless Servo Submarine Waterproof Magnetic Angle Sensor, Pulse Width Modulation Control REEFS LINK required for Programming Temp Rate: -15C ~ +70C Voltage: 6V-8.4V; Dead Band Width: 2microseconds All Metal Gears, CNC Aluminum Casing with integrated Heat Sink design, Bearing Type: 2BB, 25T Spline Dimension (LWH):1.16x.55x1.14in / 29.5x14x29mm, Weight: 1.05oz / 30g Torque: 85oz-in @ 6.0V/95oz-in @ 7.4V/103oz-in @ 8.4V Speed: .11sec @ 6.0V/.10sec @ 7.4V/.08sec @ 8.4V Unload Current: 180mA/200mA/230mA/260mA @ 4.8V/6.0V/7.4V/8.4V Load Current: 1.2A/1.4A/1.5A/1.8A @ 4.8V/6.0V/7.4V/8.4V
Features:
Specifications:
Echo Six Hobbies
by
Echo Six Hobbies
RAW 100 Mini Servo Programmable
- Regular price
- $95.00
- Sale price
- $95.00
- Regular price
-
Shipping calculated at checkout.
